The key to whether a USB fan works well actually lies in these three small components!

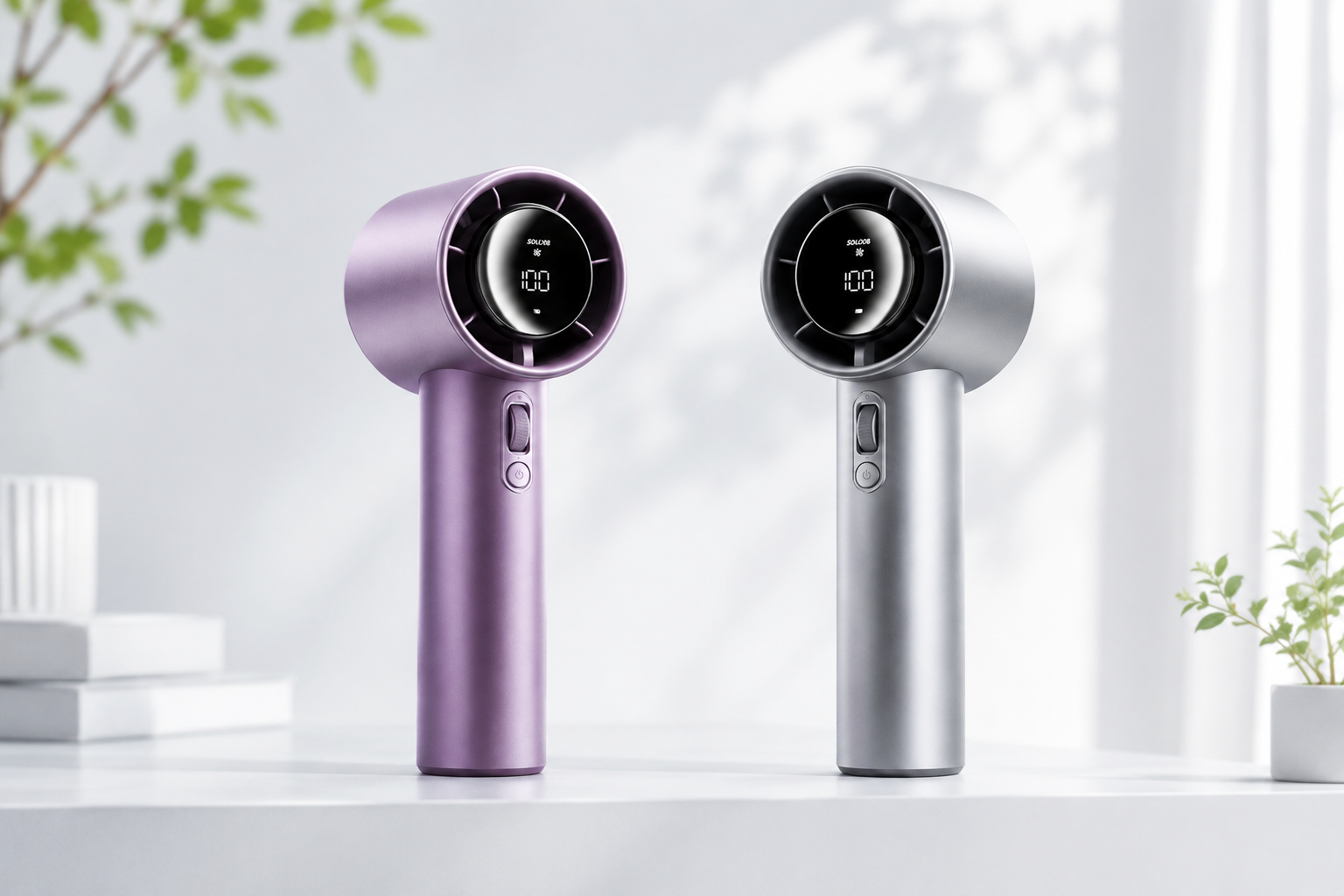

As soon as summer arrives, USB mini fans become “lifesavers” in offices, dorm rooms, and on outdoor outings. Lightweight, portable, plug-and-play, and with sufficient battery life, they appear simple in design. However, many people overlook a key fact: whether a fan operates stably, runs quietly, overheats, or lasts a long time essentially depends on the performance of the discrete components in its internal circuitry.
Many low-cost fans develop issues after a period of use, such as reduced airflow, overheating, unusual noises and vibrations, and shortened lifespan. The root cause is often high component wear, low efficiency, and insufficient stability.
As a domestic discrete component manufacturer with over 20 years of industry experience, GK’s diodes, transistors, and lithium battery management chips are widely used in USB fans, small appliances, and low-voltage power supplies. With their high consistency, reliability, and low-loss characteristics, they enhance the user experience and extend the lifespan of end products right from the source.

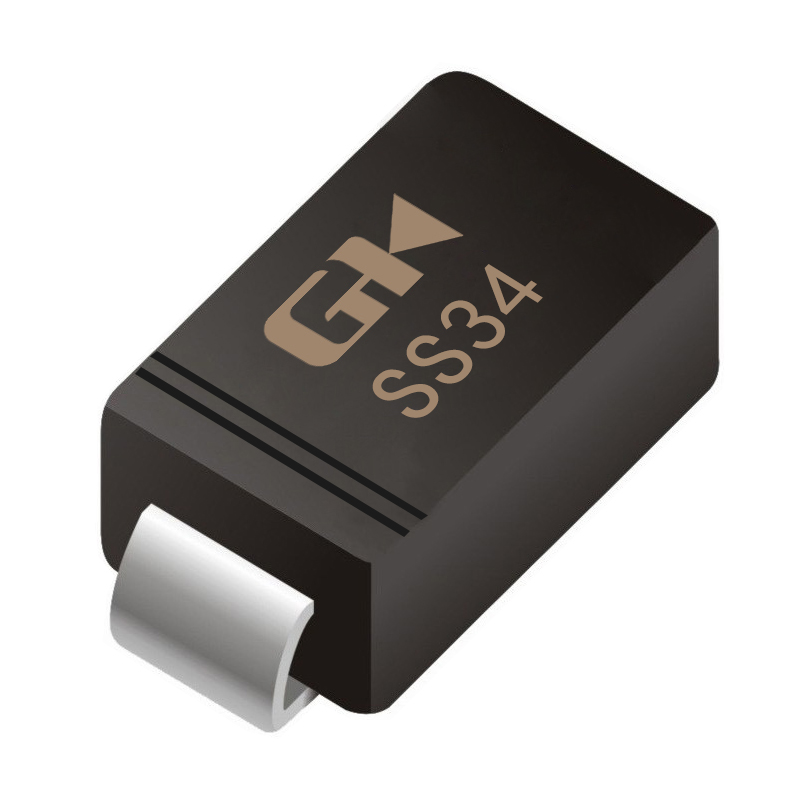

PART1:SS34 Schottky Diode: Low-Loss Power Supply for More Stable Fan Operation
USB fans typically operate on a 5V low-voltage power supply, which imposes strict requirements on power consumption and temperature rise. If the voltage drop across the rectifier device is too high, it can lead to reduced airflow, shorter runtime, or even overheating. The Good-Walk SS34 (3A/40V) Schottky diode, featuring a surface-mount package, is a common high-efficiency rectification and protection device in USB small appliances.
Key Advantages:
✅ Low forward voltage drop: Typically 0.45–0.55V, significantly reducing conduction losses compared to standard silicon diodes and improving energy efficiency.
✅ Lower heat generation: Low power loss results in minimal temperature rise, mitigating performance degradation during prolonged operation.
✅ Fast reverse recovery: No reverse recovery delay, making it suitable for rectification, hold-up, and reverse connection protection.
✅ Compact SMA/SMB packaging: Suitable for slim fan PCB designs and compatible with automated surface-mount production.
In USB fan circuits, the SS34 primarily handles power rectification and protection, serving as a critical foundational component for enhancing stability.
PART2:MMBT3904 NPN Transistor: Surface-mount drive control for smooth and quiet fan operation
Fan speed control, start/stop, and soft start rely on the transistor’s ability to control and amplify the motor current. Insufficient drive power can result in unstable speed, motor vibration, or even abnormal noise. The Good-Walker MMBT3904 NPN transistor, in an SOT-23 surface-mount package, is a commonly used general-purpose control device in small electronic devices.
Key Advantages:
✅ Low-power drive: Low saturation voltage effectively reduces drive losses when powered by 5V.
✅ Responsive performance: Stable current amplification enables multi-speed control and soft start.
✅ Stable operation: Controls motor current fluctuations, reducing vibration and low-frequency noise.
✅ Ultra-compact SOT-23 package: Suitable for high-density PCB layouts and compatible with SMT assembly processes.
Whether for basic fixed-speed fans or multi-speed variable-speed fans, the MMBT3904 reliably handles the drive task.

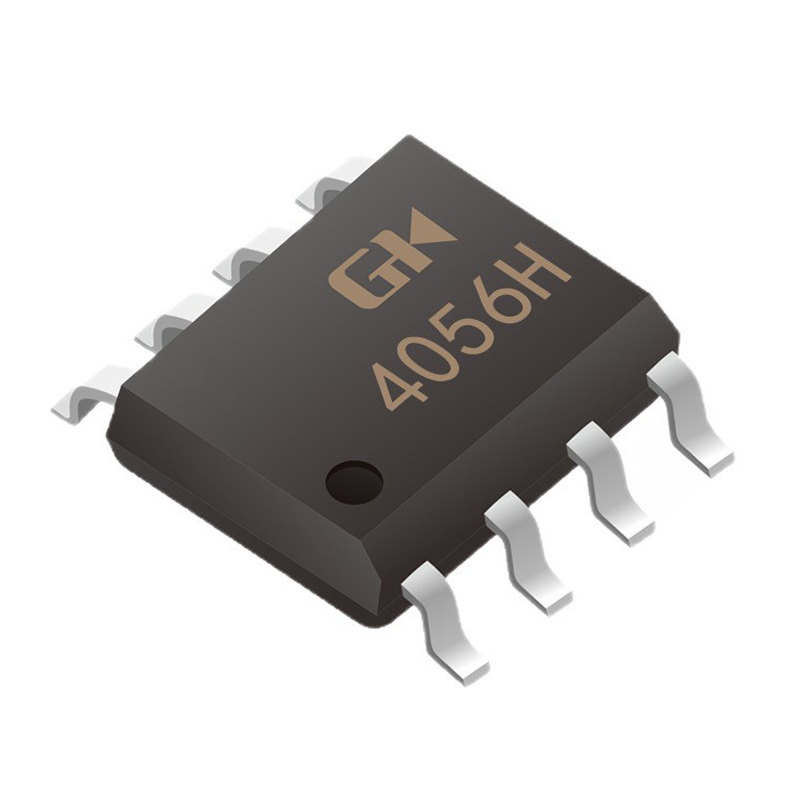

PART3:4056H Lithium Battery Management IC: Enhanced Safety and Longer Battery Life
For USB fans equipped with lithium batteries, charge and discharge management is critical. The GoodWalk 4056H is a single-cell lithium battery IC that integrates charging management and protection, widely used in portable fans, TWS earbuds, and small household appliances.
Key Advantages:
✅ Precise constant-current and constant-voltage charging: Protects the battery and extends its lifespan
✅ Overcharge/Overdischarge/Overcurrent Protection: Enhances overall device safety
✅ High Efficiency and Low Heat Generation: Optimizes energy utilization
✅ Compact Package Design: Suitable for slim devices and facilitates mass SMT production
When paired with the SS34 and MMBT3904, the 4056H ensures greater stability and reliability in three key areas: low-voltage power supply, drive control, and battery management.
Reliable Components Determine the Long-Term User Experience of Small Appliances
From the SS34 for rectification and protection, to the MMBT3904 for drive control, and the 4056H for battery management, GoodWalk ensures that its components meet the following standards through mature packaging processes and a rigorous testing system: High parameter consistency, excellent high- and low-temperature stability, superior batch reliability, and stable production consistency. These component solutions are not only suitable for USB fans but are also widely used in small desk lamps, power banks, adapters, and various low-voltage portable devices, providing a reliable foundation for end products. Conclusion: When consumers look at a fan, they focus on airflow, quiet operation, and user experience;
when engineers design a fan, they prioritize stability, power consumption, and lifespan. However, what truly determines the upper limit of the user experience is often not the casing, but the invisible discrete components inside. By choosing the GK SS34 Schottky diode + MMBT3904 NPN transistor + 4056H lithium battery management IC solution, USB fans can achieve: lower power loss, more stable power supply, quieter operation, and longer service life.
